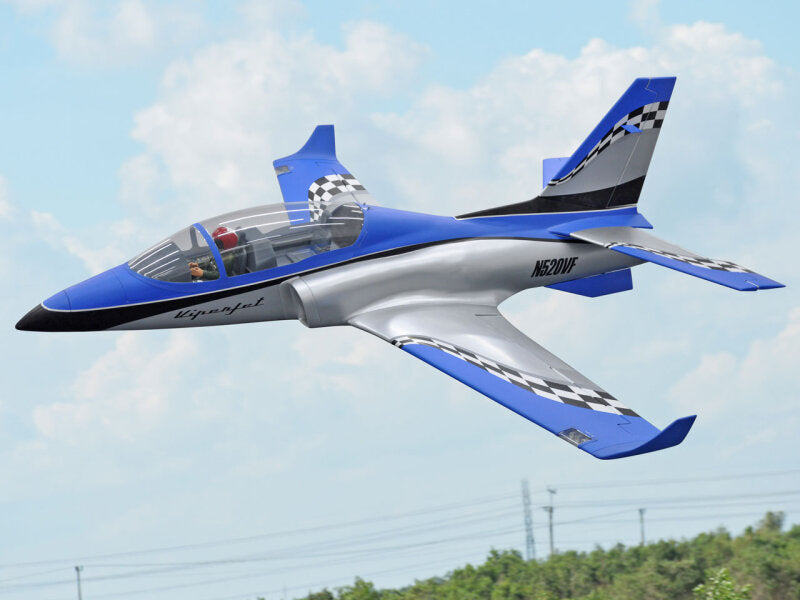

Viper Jet V3 (blue-silver) / 1885 mm

The Viper Jet is a sport aircraft designed and built by Viper Aircraft Corporation, which is supplied by the manufacturer in kits. It is a conventional low-wing aircraft with tandem seats. The jet engine is located in the fuselage and the nose wheel landing gear is retractable. The aircraft is made entirely of composite materials. Our Viper Jet is a true-to-scale replica of the original and is made entirely of wood, designed for 120mm impeller drives. It convinces with great flight performance and fantastic detailed solutions.

Note: The following video shows the pre-series model without the CAM-AIR air intakes in the fuselage and without the headlight preparation in the wings.



Test report also on www.EDF-JETS.de

Product features
* ARF finished model in modern wooden construction (Lasercut)
* Ready covered as shown
* Sensationally equipped cockpit as shown (standard)
* Functional landing flaps
* Electric retractable landing gear and scale landing gear legs included
* Extensive accessories, richly illustrated instructions

Technical data
Wingspan = 1885mm
Length = 1820mm
Take-off weight = approx. 8.1 .. 9.1kg
Wing area = 62.2dm²
Wing loading = 143.1g/dm²
R/C functions = Rudder, elevator, ailerons, flaps, motor control, retractable landing gear
Channels = 8 channels / 8 servos

Optional accessories (recommended)
Impeller drive Schübeler DS-86-AXI HDS 120mm + Tenshock X-501 5Y (12S)
[2] LiPo battery LEMONRC 6300-6S, #15743
Brushless controller S-CON 150HV, # C6844
[8] MASTER Digital Servo DS3615, # C8447 (also available as HV)
[2] LED headlight, # C8783
