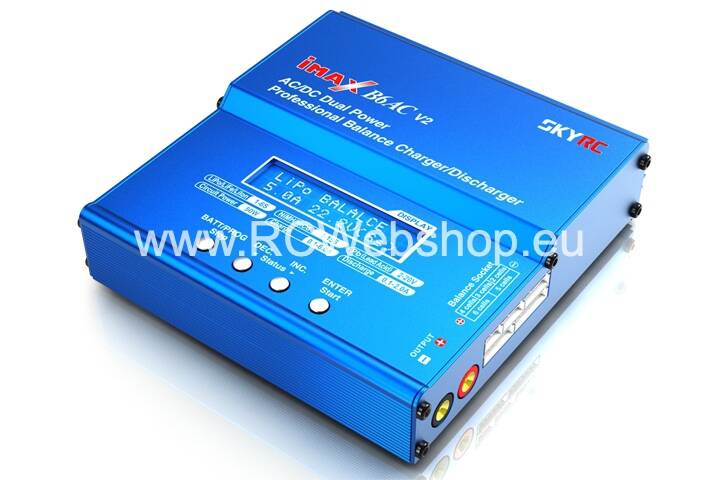

SKYRC iMAX B6AC V2 AC/DC Charger # SKY100008

EAN 6930460000040

Model: SKY100008
You can use the iMAX B6AC V2 AC/DC everywhere, powered by AC 100-240 V or DC 11-18 V, and for all the batteries types used for RC hobby. It offers a 50 W charge power.
Lithium Battery MeterPlug your LiPo/LiIon/ LiFe balance plug into the charger and use the battery meter as a voltage tester to quickly see the voltage readings from each cell.
Internal Resistance MeterUse this function to measure the resistance in each of your lithium battery's cells. This helps determine the health of your cells, to be sure you are getting the most power out of them.
Terminal Voltage ControlThe voltage at which the charger cuts off the charge to each cell can be adjusted.  LiPo 4.18V-4.25V (Default 4.20V)  LiIo 4.08V-4.20V (Default 4.10V)  LiFe 3.58V-3.70V (Default 3.60V)
PC ConnectivityYou can monitor pack voltage, cell voltage and other data during the charging process. View charge data in realtime graphs. You can also control charging functions and update the firmware on the charger when new updates come out. The software (PC Only) can be downloaded from SKYRC's website for free.
Belangrijke eigenschappen

High 6.0Amp Charge Rate
Balance Charges & Balance Discharges LiPo, LiON, LiFe (1S-6S cells)
Storage Mode to Preserve Battery Longevity
Charges NiMh, NiCd (1-15 cells)
AUTO charge mode for NiMh
Charges Lead-Acid (2V-20V)
Many Safety Features

Capacity Cutoff
Time Limit Cutoff
Temperature Cutoff

10 Battery Memory Storage Settings
NiMh Cycling, Charge>Discharge, up to 5 times to refresh battery life
User definable charge rates from 0.1 amps to 6.0 Amps
50 Watt max output. Charge Amperage auto adjusts depending on battery voltage. (i.e. Charge rate for 3S LiPo: 50W/11.1V = 4.5A max charge rate)
Balance Port Built In (Balances 2S-6S Batteries) (Uses Align/E-Flite/CSRC style Balance Plug Port) (Thunder Power adapter available separately, GTP1005)

Specs:
Operating Voltage Range: AC 100 - 240V / DC 11 - 18VCircuit Power: Max. 50W for charging, Max. 5W for dischargingCharge Current Range: 0.1 - 6.0A (Amperage auto adjusts to 50W max based on battery voltage) (50W / Battery Voltage = Max Charge Amperage)Discharge Current Range: 0.1 - 2.0A (5 Watts)Current Drain for Balancing:: 300mAh/cellNiCd/NiMH Battery Cell Count: 1 - 15 CellsLithium Battery Cell Count: 1 - 6 SeriesPb Battery Voltage: 2 to 20VWeight: 626gDimensions: 135mm x 144mm x 36mm
Inhoud kit
iMAX B6AC V2 AC/DC charger
Comes with 5 different charging plugs

Dean's Plug
Futaba / Receiver
JST
XT60
Alligator Clip
